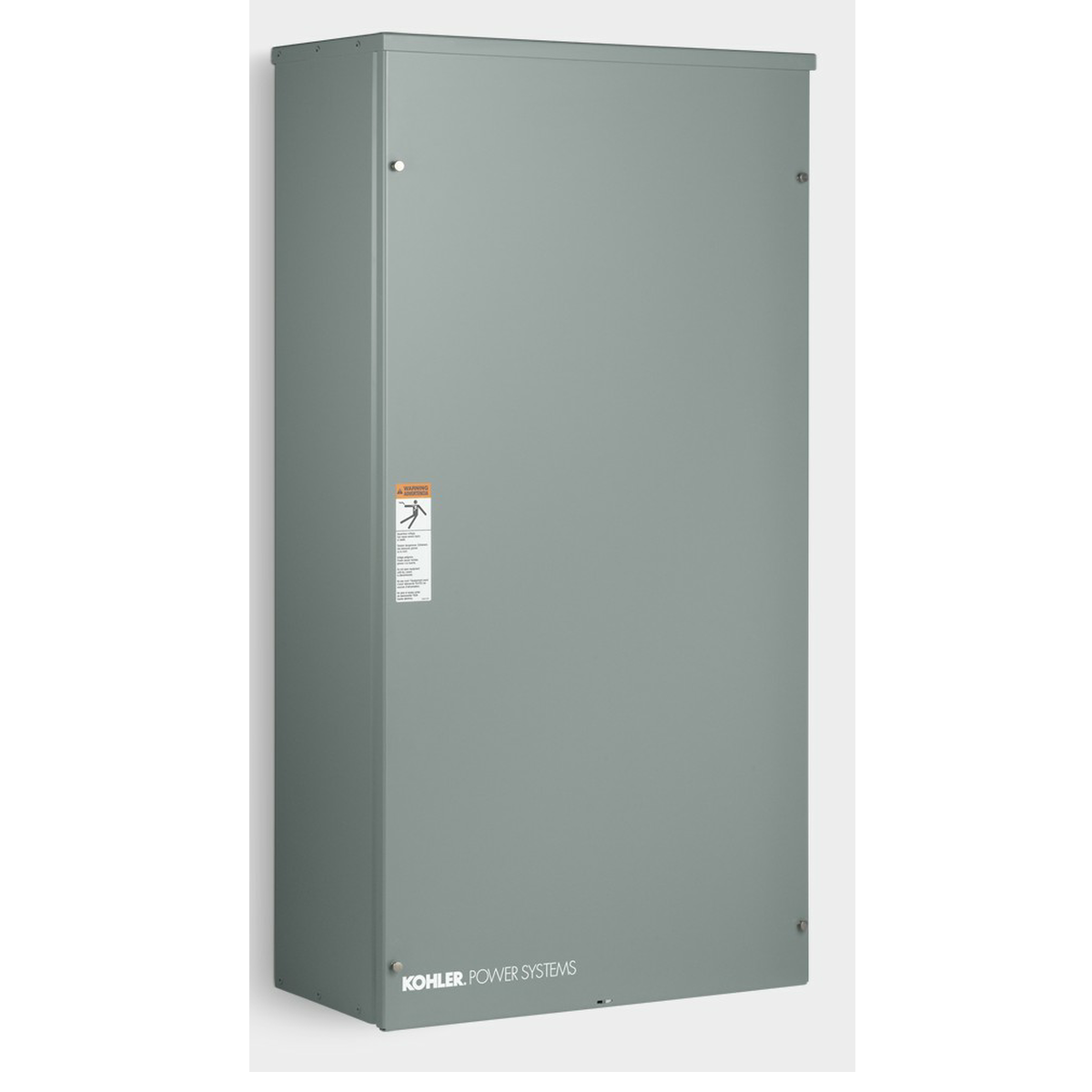

Kohler RDT CFNC 0100B RDT Series 100 Amp Outdoor Automatic Transfer Switch with 16 Circuit Load Center
  • Kohler RDT CFNC 0100B RDT Series 100 Amp Outdoor Automatic Transfer Switch with 16 Circuit Load Center

Kohler RDT CFNC 0100B RDT Series 100 Amp Outdoor Automatic Transfer Switch with 16 Circuit Load Center

item #OG73086880

$449.80
Quantity:


Product Description

Features

Type

Load Center

Amp Rating

100

Circuits

16

Enclosure

NEMA 3R

  • Prewired Square D type QO load center
  • 100 amp load centers use up to 16 circuit breakers - not included
  • Standard Features
  • UL listed and CSA certified
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty

Product Specification

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Transfer Switch Style
Select Circuit
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
Overview
Weight
18 Pounds
Consumer Warranty
5 Years
Product Depth
7 Inches
Product Width
16.4 Inches
Product Height
36.1 Inches
UPC
650531170996
