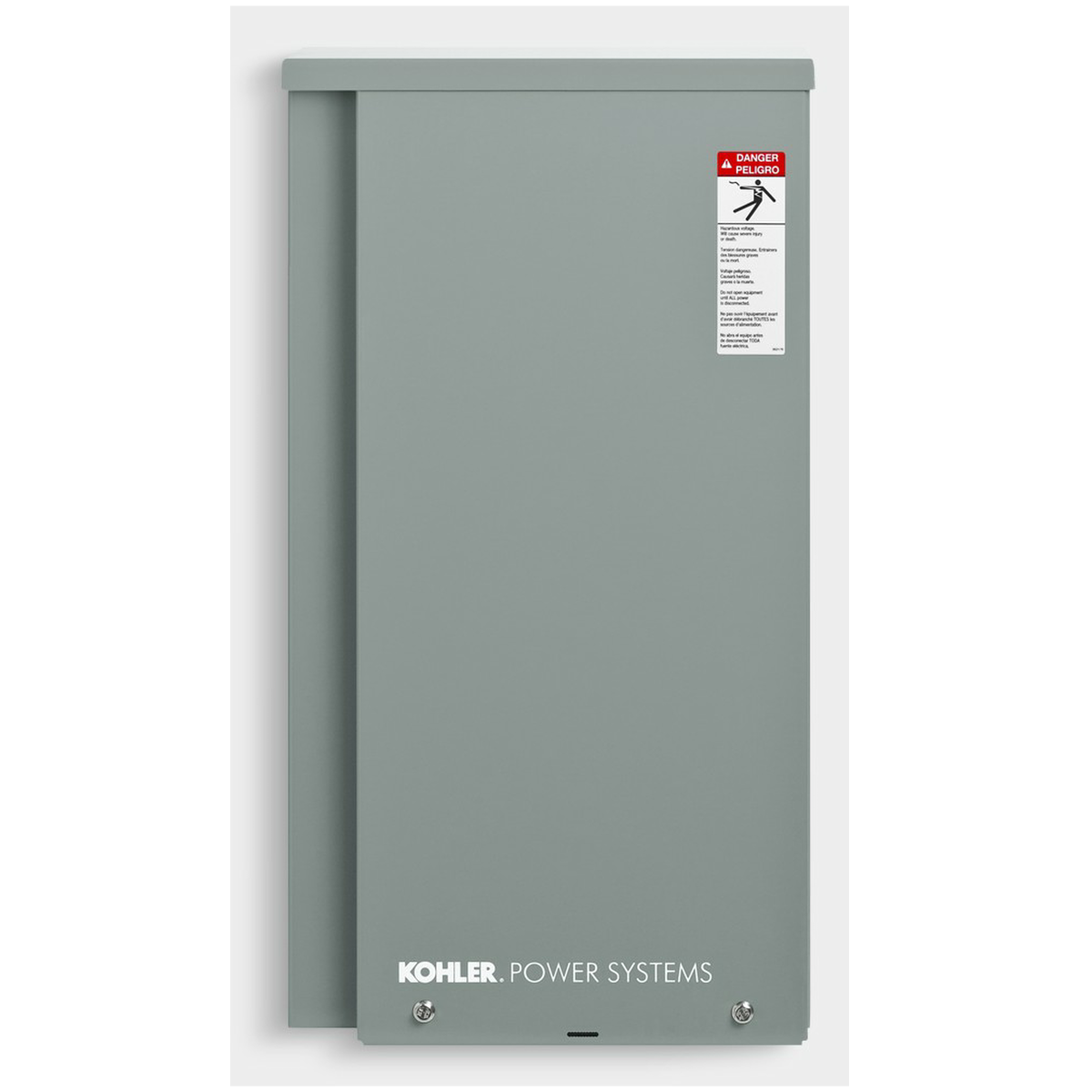

Kohler RDT CFNC 0100A RDT Series 100 Amp Outdoor Automatic Transfer Switch
  • Kohler RDT CFNC 0100A RDT Series 100 Amp Outdoor Automatic Transfer Switch

Kohler RDT CFNC 0100A RDT Series 100 Amp Outdoor Automatic Transfer Switch

item #OG730813556

$414.05
Quantity:


Product Description

Features

Type

Standard

Amp Rating

100

Load Mgmt.
Enclosure

NEMA 3R

  • Standard Features
  • UL listed and CSA certified
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty

Product Specification

Specifications

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
2 Poles
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
Overview
Weight
15 Pounds
Consumer Warranty
5 Years
Product Depth
7 Inches
Product Width
13.4 Inches
Product Height
24.1 Inches
UPC
650531125071
