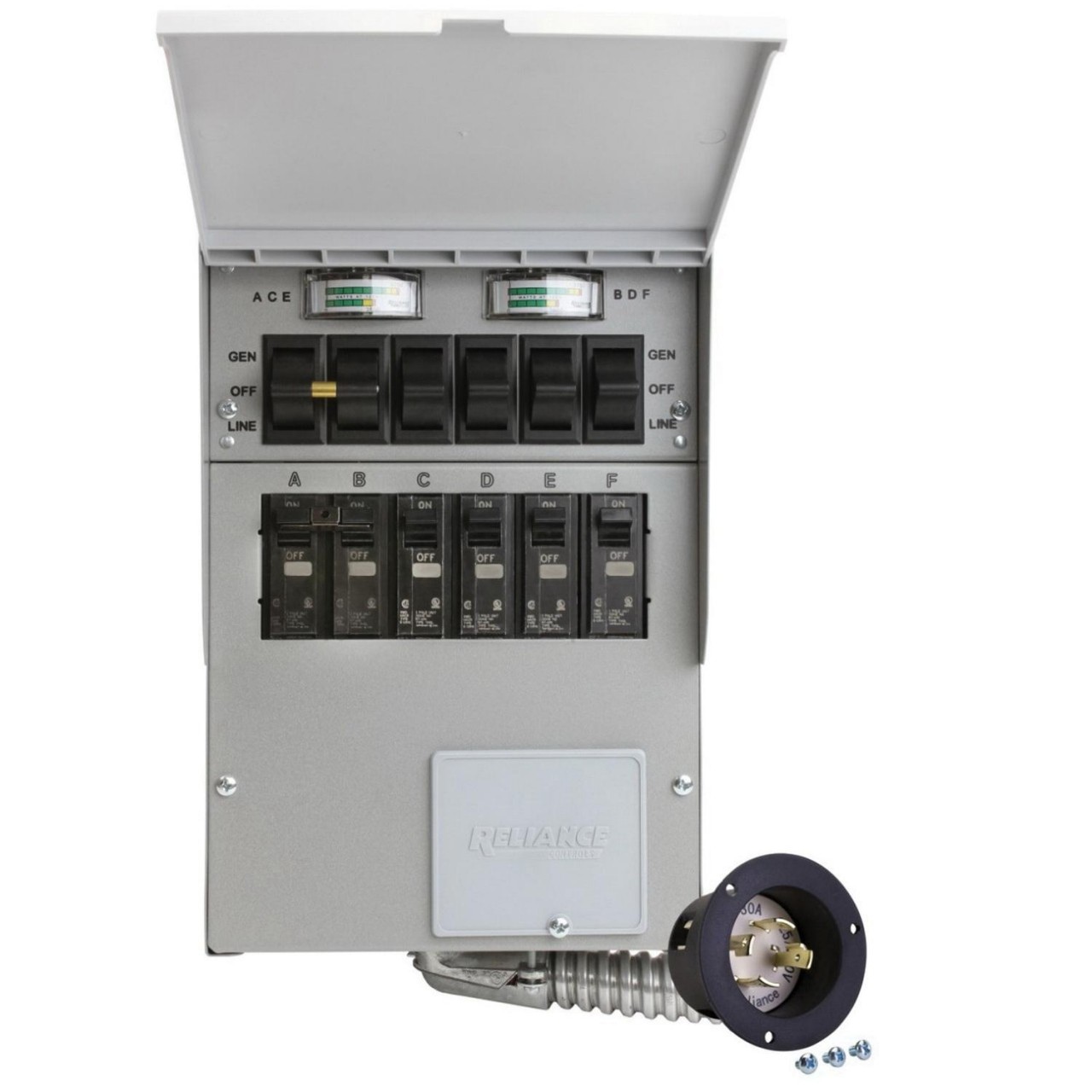

Reliance Controls Pro Tran 2 20 Amp 120 240V 6 Circuit Indoor Transfer Switch
  • Reliance Controls Pro Tran 2 20 Amp 120 240V 6 Circuit Indoor Transfer Switch

Reliance Controls Pro Tran 2 20 Amp 120 240V 6 Circuit Indoor Transfer Switch

item #OG730858233

$152.74
Quantity:


Product Description

Features

Type

Manual

Amp Rating

20

Circuits

6

Enclosure

NEMA 1R

  • Pro/Tran® 2 20-Amp 6-Circuit 120/240V Manual Transfer Switch
  • The next generation of Loadside™ manual transfer switches
  • Safest Way to Distribute Power
  • Eliminates dangerous backfeeds and electrical overloads
  • 6 Total Circuits (1" Interchangable Style)
  • (4) 15A 1-Pole and (1) 20A 2-Pole
  • NEW Color-Coded Built-In Wattage Meter
  • Helps you balance and manager generator load
  • Versatile Connection
  • Allows hardwiring OR plug-in connection via power inlet (included)
  • Hinged, Non-Metalic Cover
  • Protects toggle swtiches/breakrs & povides a finished apperance
  • Powder-Coated Steel Cabinet For Indoor Installation
  • 18" Flexible conduit w/ all factory wires clearly marked/colored
  • (6) Combination 1/2" & 3/4" knockouts for easier installation
  • Easily re-configured in the field for multiple 2-pole circuits
  • Safety & Certifications
  • Certified for use by Underwriter Laboratories to UL Stanard 1008
  • •Meets all requirements of article 702 of the NEC ANSI/NFPA 70
  • 5-Year Limited Warranty

Product Specification

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
5000 Watts
Rated Amps
20 Amps
Enclosure
NEMA 1R
Conduit Length
18
Number of Circuit Breakers
6
Max Generator Input
30 Amps
Maximum Wattage
5000 Watts
UL Listed
Yes
Overview
Weight
9 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
11.25 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
UPC
815181012250
Transfer Switch Circuits
15A 120V
4
20A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA L14-20R
1
