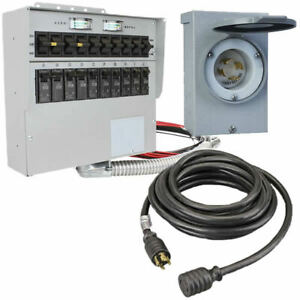

Reliance Controls 50 Amp 120 240V 10 Circuit Power Transfer System
  • Reliance Controls 50 Amp 120 240V 10 Circuit Power Transfer System

Reliance Controls 50 Amp 120 240V 10 Circuit Power Transfer System

item #OG730896789

$432.24
Quantity:


Product Description

Features

  • 50-Amp (120/240V 10-Circuit) Power Transfer System
  • Everything but the electrician and generator
  • Safest Way to Distribute Power
  • Eliminates dangerous back-feeds and electrical overloads
  • Standard Circuits
  • (6) 15A 1-pole, (1) 20A 2-pole, and (1) 30A 2-pole
  • Versatile Design w/ Interchangeable Breakers
  • You determine the right combination for your application
  • Built-In Wattage Meter
  • Track power input to ensure proper load balancing
  • 25-Foot 50-Amp Straight Blade Power Cord By Generac
  • Flexible design male (L14-50) & female (CS6364/5) ends
  • 50-Amp Twistlock Power Inlet Box
  • Rain-tight design w/ flip-lid keeps dirt and debris out
  • Generous wiring space that facilitates rough-in
  • Kit Includes:
  • 50-Amp (120/240V 10-Circuit) Manual Transfer Switch
  • 50-Amp (25-Foot) Generator Power Cord
  • 50-Amp (Twistlock) Power Inlet Box
  • UL Listed & Certified for use by Underwriter Laboratories
    • Product Includes
    • (1) Reliance Controls Pro/Tran 2 - 50-Amp (120/240V 10-Circuit) Transfer Switch w/ Interchangeable Breakers (A510C)
    • (1) Generac 6389 - 50-Amp (Straight Blade / Twistlock 120/240V) Generator Power Cord (25-Foot) (6389)
    • (1) Reliance Controls 50-Amp Power Inlet Box w/ Flip-Lid (PB50)

Product Specification

Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
12500 Watts
Rated Amps
50 Amps
Enclosure
NEMA 1R
Max Generator Input
50 Amps
Maximum Wattage
12500 Watts
UL Listed
Yes
Overview
Weight
47 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
13 Inches
Product Width
11.75 Inches
Product Height
4.5 Inches
Transfer Switch Circuits
15A 120V
6
20A 240V
1
30A 240V
1
Circuit Breaker Protection
Each Circuit
Plugs
NEMA 14-50R
1
CS6369 - 50-Amp Twistlock
1
Cord
Cord Length
25 feet
Connection Type
Male
Prongs
Straight-Blade
Wire Gauge
6 Gauge
