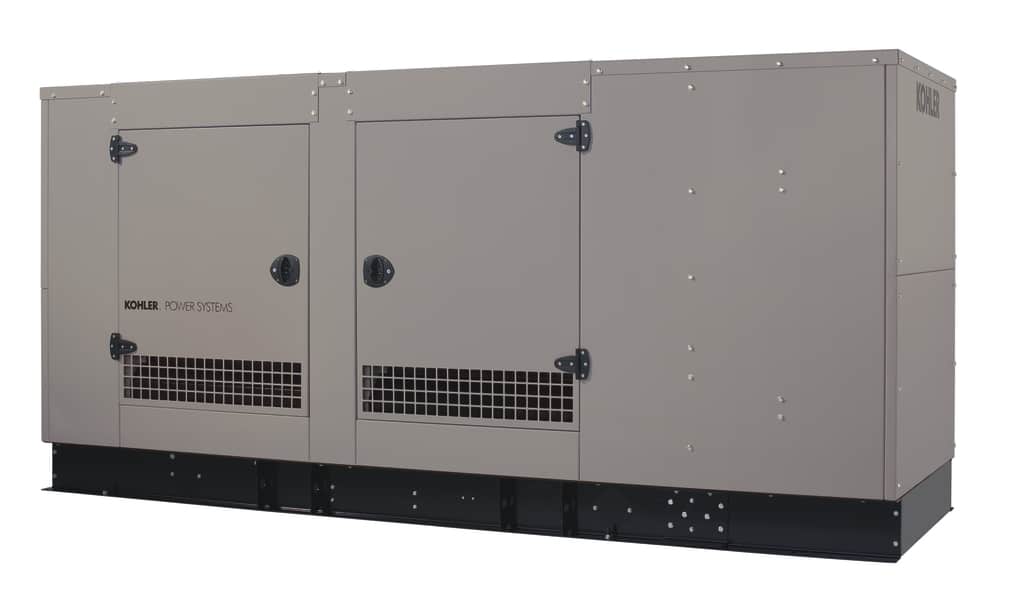

Kohler KG100R-QS2- 100 kW Emergency Standby Power Generator (Steel) (120/208V 3-Phase)
  • Kohler KG100R-QS2- 100 kW Emergency Standby Power Generator (Steel) (120/208V 3-Phase)

Kohler KG100R-QS2- 100 kW Emergency Standby Power Generator (Steel) (120/208V 3-Phase)

item #OG730819268

$17,947.15
Quantity:


Product Description

Features

Grade

Emergency

Style

Standby (Liquid Cooled)

Run Watts

100,000 Rated Watts

Voltage

120/208 Three-Phase

Fuel

LP/Natural Gas

Engine

Kohler

  • Kohler® 100kW Light Commercial Emergency Generator
  • For commercial buildings with 120/208V 3-Phase service
  • Premium 5-Year / 2000 Hour Limited Warranty
  • Backed by Kohler's extraordinary reliability & performance
  • Runs on Clean Burning Natural Gas & LP Vapor
  • Simple field conversion, while maintaining emission certification
  • Industrial-Grade, Kohler® 6.2L Liquid-Cooled Engine
  • Powerful, reliable Industrial-Grade design w/ hydraulic valve lifters
  • Runs at 1800 RPM for fuel efficient and quieter operation
  • Remarkable Power Quality
  • Exceptional voltage & frequency regulation w/ ultra-low THD
  • Clean power for even the most sensitive electronics
  • Fast-Response® X Excitation System
  • Easily handle full loads within 10 seconds
  • Kohler® APM402 Controller
  • Provides advanced control, system monitoring & system diagnostics
  • Integrated hybrid voltage regulator with +/- 0.5% regulation
  • Remote communication thru a PC via network / serial configuration
  • Digital Display & Menu Control
  • Provides easy to read local data access
  • Sound-Attenuating Steel Enclosure
  • Fade, scratch, & corrosion-resistant powder-baked finish
  • Internal silencer & acoustic insulation keeps dB under 69 @ 7M
  • Local Emergency Stop Switch
  • Provides added safety when generator is operating
  • Includes Pre-Installed Block Heater
  • Provides easier generator starting & quicker warm up times

Product Specification

Product Specs
Voltage
120/208 Three-Phase
Frequency
60 Hertz
Rated Watts
100000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
100000 Watts
LP Power Capacity
100000 Watts
NG Fuel Consumption @ 50% Load
946 ft³/hr
NG Fuel Consumption @ 100% Load
1473 ft³/hr
LP Fuel Consumption @ 50% Load
11 gallons/hr
LP Fuel Consumption @ 100% Load
18.8 gallons/hr
Rated Amps
347 Amps
Decibel Rating @ 7m
69 dbA
Transfer Switch
Automatic (Not Included)
Battery
Not Included (650 CCA)
Enclosure
Steel
Mounting Pad
Concrete (Not Included)
Cooling System
Liquid Cooled
UL Listed
Yes
Grade Type
Emergency
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
6200 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
3562 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Length
138.8 Inches
Product Style
Standby Generator
Product Width
45.4 Inches
Product Height
65.5 Inches
