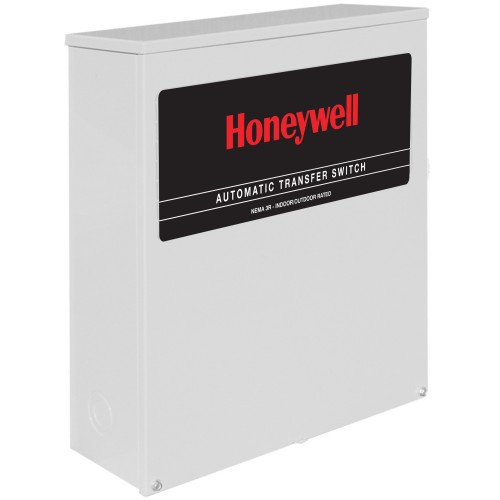

Honeywell RTSZ400K3 Commercial 400 Amp Automatic Transfer Switch 277 480V
  • Honeywell RTSZ400K3 Commercial 400 Amp Automatic Transfer Switch 277 480V

Honeywell RTSZ400K3 Commercial 400 Amp Automatic Transfer Switch 277 480V

item #OG730878378

$1,416.35
Quantity:


Product Description

Features

Type

Standard

Amp Rating

400

Load Mgmt.

Not Compatible

Enclosure

NEMA 3R

  • 400-Amp Automatic Transfer Switch (277/480V 3-Phase)
  • For 277/480V 3-Phase Honeywell™ Commercial Generators
  • Steel, NEMA Type 3R Enclosure
  • Weather-resistant design for indoor & outdoor installation
  • Electrostatically applied and baked powder coating paint (Gray)
  • Designed For Standard Installation*
  • May require a sub-panel for overload protection
  • Work's With Honeywell's Sync 1.0™ Generator Controller
  • Generator's controller handles all the timing, sensing & exercising
  • Electrically Operated, Mechanically-Held Contacts
  • For fast, positive connections that you can depend on
  • Tech Spec Summary: (See Spec Sheet For More Info)
  • Rated 400-Amps @ 277/480V
  • Transition Type: Open
  • Withstand Rating: 25,000 Amps --- Lug Range: 400 MCM - #4
  • 2-Year Limited Warranty

Product Specification

Specifications

Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
UL Listed
Yes
Overview
Weight
133 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
48.1 Inches
Product Width
30.1 Inches
Product Height
13.1 Inches
UPC
696471612974
