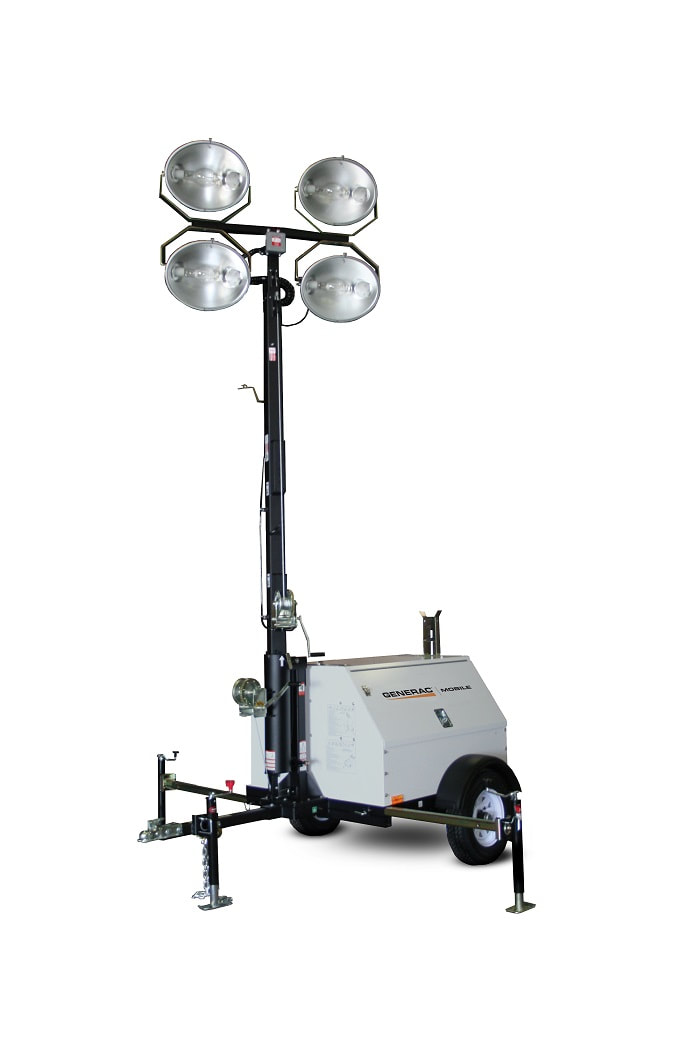

Generac MLT4200IF4V-STD - 20kW Towable Diesel Vertical Mast Light Tower w/ Isuzu Engine & Electric Winch

item #OG730854763

$17,224.35
Quantity:


Product Description

Features

Grade

Professional

Style

Tow-Behind

Run Watts

20,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

Diesel

Engine

Isuzu
  • MLT4200IF4V-STD - 20kW Vertical Mast Light Tower (Isuzu® / Electric Winch)
  • Designed & engineered for optimum performance, reliability and longevity
  • 4 x 1000-Watt Metal Halide Lamps
  • Provides light coverage for up to 7 acres; Individual On/Off switches
  • Oval aluminum reflectors w/ tempered glass lens & silicone gaskets
  • Friction disc mounting for tool less positioning
  • 23-Foot, 5-Section Vertical Mast w/ Electric Winch
  • Allows for quick setup, Raises mast in 15 seconds
  • Vertical mast allows for more compact storage and transportation
  • 359° Ground-Level Mast/Fixture Rotation w/ Locking System
  • Distinctive angle fixture mount for common light distribution
  • 2.2L Isuzu® Liquid Cooled Diesel Engine (EPA Tier 4 Final)
  • Fuel efficient design runs at 1800 RPM for extended engine life
  • 50-Gallon Polyethylene Internal Fuel Tank
  • Provides up to 23.5 hours of run time with all 4-light On
  • 3.5" Fill port for easier access
  • 120/240V - 167/83A Marathon Electric Brushless Alternator
  • Robust design provides up to 20 kW of standby output
  • Power Zone Autolight Controller w/ Improved Engine Control System
  • Automated dusk to dawn or 7-day scheduler operation
  • Back-lit LCD display with programmable service timers and one-touch starting
  • Digital hour meter; Automatic low oil pressure/high temp. shutdown
  • (2) 240V 30A (L6-30R) & (2) 240V 50A (Non-Nema 6369) Twistlock Outlets
  • Individually breakered for added safety during operation
  • (2) 120V 20A GFCI Duplex Outlets
  • Provides the convenience of powering 120V equipment
  • 14-Gauge Steel Enclosure - 68 dB(A) @ 23'
  • Powder-coated, UV and fade resistant paint for exterior/interior of enclosure
  • Multi-lingual operating/safety decals; Manual holder w/ operating manual
  • Tubular Steel Trailer w/ 48" Removable Tongue
  • (4) 2000 lb. Adjustable leveling jacks; Transport/lock in horizontal storage position
  • Front step platform for easy adjustment of light fixtures
  • DOT Approved Tail, Side, Brake and Directional Lights
  • 3000 lb. Leaf spring axle; Single wall polyethylene fenders
  • 15" P205/75R15 - 6 ply wheel/tire; 58" Axle Span
  • 2" Ball hitch & safety chains w/ spring loaded safety hooks
  • Includes Starting Battery
  • CUSTOMERS MUST UNLOAD FROM FREIGHT CARRIER
  • 1-Year / Unlimited, 2-Year/ 2,000 Hour Limited Warranty

Product Specification

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
20000 Watts
Fuel Type
Diesel
Rated Amps
167/83 Amps
Tank Size
50 Gallons
Fuel Tank Material
Plastic
Decibel Rating @ 7m Learn More
68
Idle Control
No
Hour Meter
Yes
Lifting Eye
Yes
Battery
Included
Grade Type
Professional
Engine
Engine Brand
Isuzu
Starting System
12-Volt Button Start
HP
40.2 HP
CC
2200 CC
Engine RPM
1800 RPM
Low Oil Alert/Shutdown
Yes
Overview
Weight
2277 Pounds
Certification
EPA Tier 4
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
115 Inches
Product Style
Light Tower
Product Width
68 Inches
Product Height
107 Inches
Plugs
NEMA 5-20R - GFCI
2
NEMA L6-30R
2
CS6369 - 50-Amp Twistlock
2
