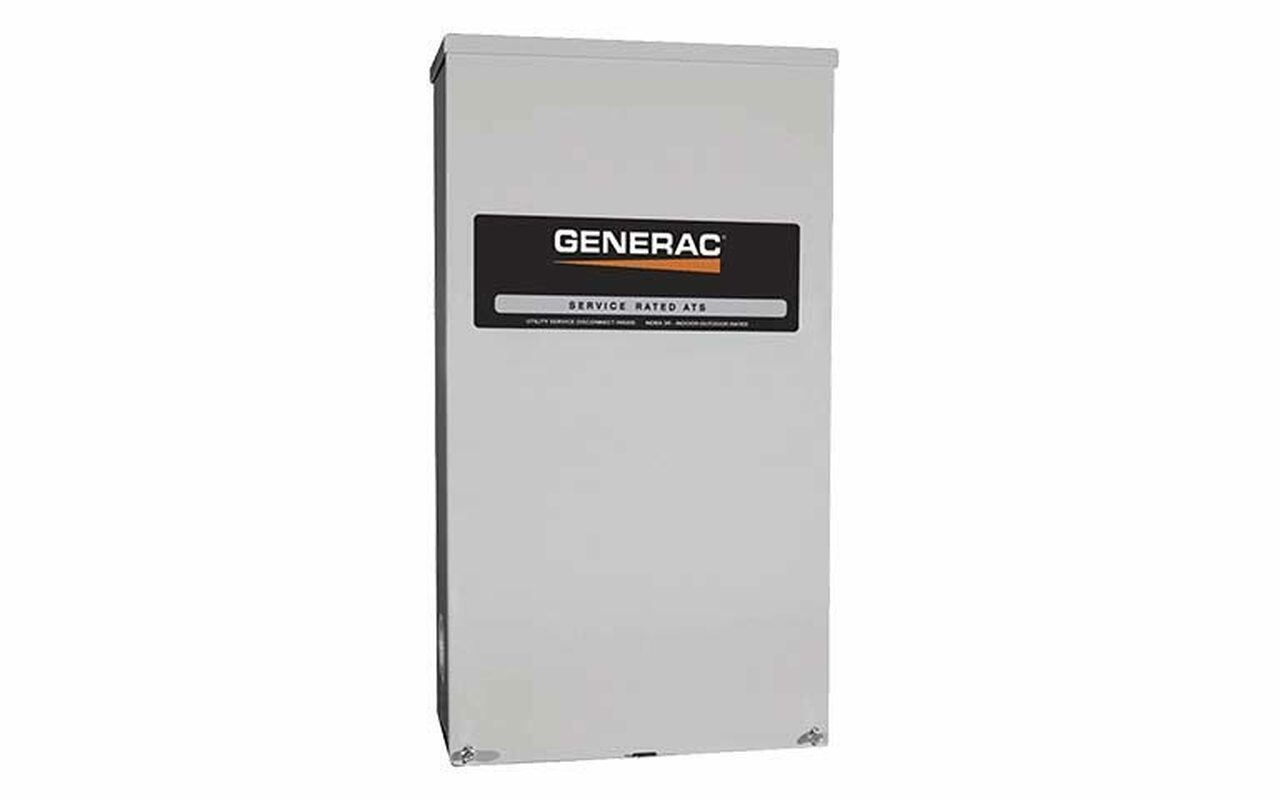

Generac 600 Amp Automatic Smart Transfer Switch with Power
  • Generac 600 Amp Automatic Smart Transfer Switch with Power

Generac 600 Amp Automatic Smart Transfer Switch with Power

item #OG730832379

$3,184.35
Quantity:


Product Description

Features

Type

Standard

Amp Rating

600

Load Mgmt.

Built-In

Enclosure

NEMA 3R

  • 600-Amp Automatic Smart Transfer Switch w/ Power Management
  • Only works with 120/240 Single-Phase generators
  • Compatible w/ all Generac 22-150kW liquid-cooled models
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
  • Manage Up To (2) Individual HVAC Loads - No Hardware Rec'd
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (4) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 3R Indoor/Outdoor Rated Enclosure
  • Heavy-duty, lockable steel design provides added security
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 42,000 Amps --- Lug Range: 1/0 - 500 MCM
  • 5-Year Limited Warranty - UL Listed

Product Specification

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
144000 Watts
Rated Amps
600 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
No
Max Utility Input
600 Amps
Max Generator Input
600 Amps
Maximum Wattage
144000 Watts
UL Listed
Yes
Overview
Weight
439 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
66 Inches
Product Width
36 Inches
Product Height
21 Inches
UPC
696471619874
