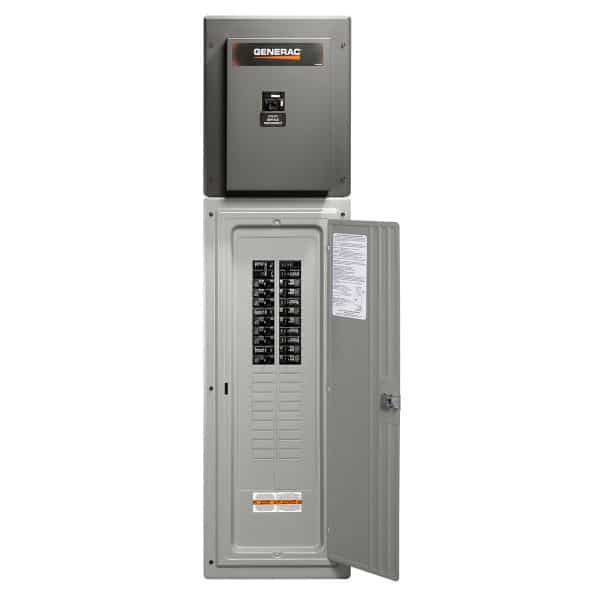

Generac 200 Amp GenReady Automatic Transfer Switch And Load Center with Power Management Service Disconnect
  • Generac 200 Amp GenReady Automatic Transfer Switch And Load Center with Power Management Service Disconnect

Generac 200 Amp GenReady Automatic Transfer Switch And Load Center with Power Management Service Disconnect

item #OG73087439

$668.85
Quantity:


Product Description

Features

Type

Service Disconnect

Amp Rating

200

Circuits

42

Enclosure

NEMA 1R

  • Generac 200-Amp GenReady™ Automatic Transfer Switch & Load Center
  • Ideal during new construction or major electrical retrofit
  • Compatible with Evolution or Nexus generator controllers
  • 200-Amp Main Circuit Breaker
  • Designed for single-phase operation
  • 42-Space Main Load Center (Breakers Not Included)
  • 60 Circuit capacity with the use of tandem breakers
  • Accepts GFCI, AFCI and tandem breakers
  • For use with Siemens, Murray, Square D and Eaton 1" breakers
  • 200-Amp Automatic Transfer Switch
  • Service-entrance rated for reduced installation costs
  • Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
  • Manage Up To (4) Individual HVAC Loads - No Hardware Req.
  • Great for homes with multiple Air conditioners (24 VAC controlled)
  • Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads & lock-out non-essential loads
  • NEMA 1 Indoor Rated Enclosure
  • Flush-mount design with electrostatically applied & baked powder coat paint
  • Installation Flexibility
  • Multiple GenReady™ panels can be supported with a single generator
  • Allows for the generator to be installed at a later time
  • Tech Spec Summary: Only For Use w/ Generac Generators
  • UL67 & UL1008
  • 5-Year Limited Warranty

Product Specification

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Transfer Switch Amperage
200-Amps
Max Circuits
60
Enclosure
NEMA 1R
Number of Circuit Breakers
42
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Overview
Weight
64 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
59.09 Inches
Product Width
14.36 Inches
Product Height
7.13 Inches
UPC
696471069860
