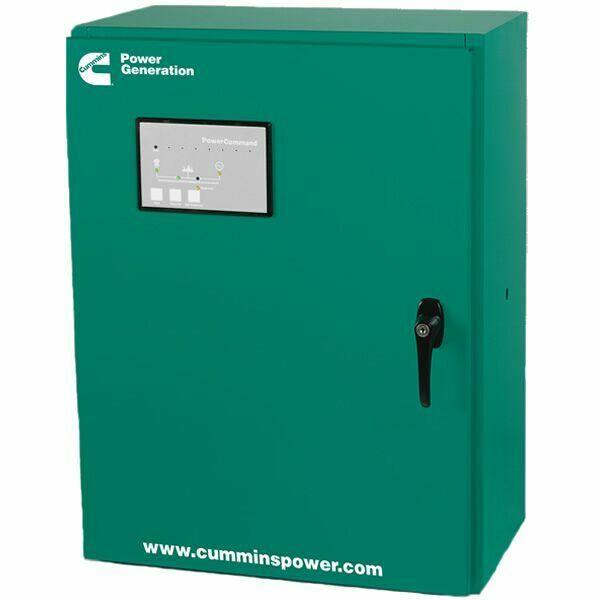

Cummins OTEC400 400 Amp PowerCommand Indoor Automatic Transfer Switch
  • Cummins OTEC400 400 Amp PowerCommand Indoor Automatic Transfer Switch

Cummins OTEC400 400 Amp PowerCommand Indoor Automatic Transfer Switch

item #OG730817393

$1,634.10
Quantity:


Product Description

Features

Type

Standard

Amp Rating

400

Load Mgmt.

Not Compatible

Enclosure

NEMA 1R

  • 400-Amp Automatic Indoor Transfer Switch
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand® Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Integral engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual operation under de-energized conditions
  • Corrosion-Resistant NEMA 1R Enclosure
  • Approved for indoor applications
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programmable

Product Specification

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
96000 Watts
Rated Amps
400 Amps
Enclosure
NEMA 1R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
225 Pounds
Consumer Warranty
1 Year
Product Length
54 Inches
Product Width
25.5 Inches
Product Height
18 Inches
