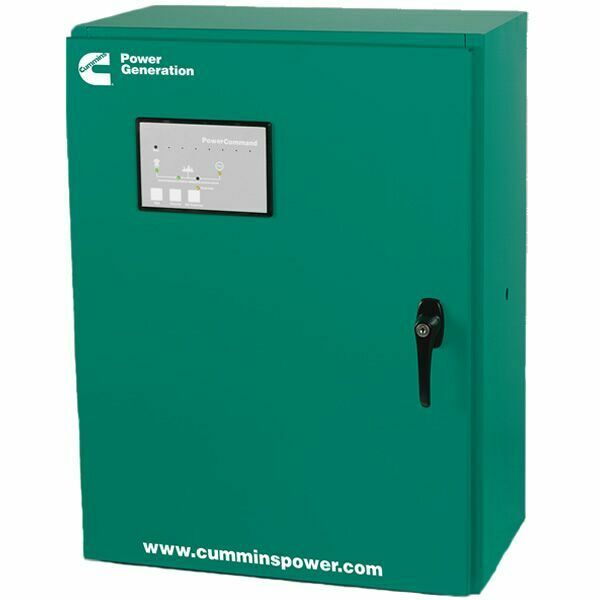

Cummins OTEC225 225 Amp PowerCommand Outdoor Automatic Transfer Switch 277 480V 3 Phase
  • Cummins OTEC225 225 Amp PowerCommand Outdoor Automatic Transfer Switch 277 480V 3 Phase

Cummins OTEC225 225 Amp PowerCommand Outdoor Automatic Transfer Switch 277 480V 3 Phase

item #OG730823145

$1,461.85
Quantity:


Product Description

Features

Type

Standard

Amp Rating

225

Load Mgmt.

Not Compatible

Enclosure

NEMA 3R

  • 225-Amp Outdoor Automatic Transfer Switch (277/480V 3-Phase)
  • For use w/ Cummins Onan Liquid Cooled Standby Generators
  • Designed For Standard Installation
  • Requires a sub-panel for overload protection
  • PowerCommand® Microprocessor Controller
  • LEDs display mode, power source & transfer switch status
  • Easy-to-use pushbuttons activate control test, exercise time etc.
  • Exerciser Clock
  • Integral engine exerciser allows for 7, 14, 21 or 28-day cycle
  • Mechanical & Electrical Interlocking Design
  • Prevents source-to-source connection through power/control wire
  • Can Be Manually Operated In An Emergency
  • Allows effective manual operation under de-energized conditions
  • Corrosion-Resistant NEMA 3R Enclosure
  • Approved for indoor or outdoor installations
  • Lockable enclosure provides added security
  • Easy Service & Access
  • Door mounted controls, single-plug harness & field programmable

Product Specification

Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
225 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
225 Amps
Max Generator Input
225 Amps
UL Listed
Yes
Overview
Weight
215 Pounds
Consumer Warranty
1 Year
Product Length
42.5 Inches
Product Width
30.5 Inches
Product Height
16 Inches
