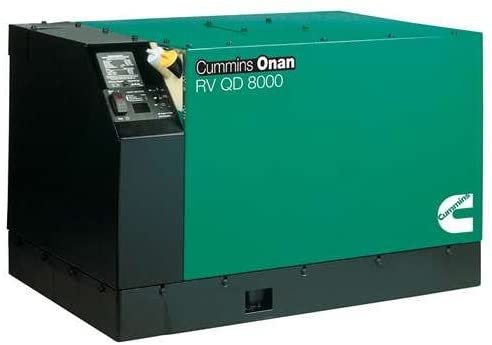

Cummins Onan RV QD8000 - 8HDKAK-1046N - 8.0kW RV Generator (Diesel)

item #OG730815181

$6,248.45
Quantity:



Product Description

Features

Grade

Recreational

Style

RV

Run Watts

8,000 Rated Watts

Voltage

120 Single-Phase

Fuel

Diesel

Engine

Cummins Onan
  • 8.0 kW Diesel Powered RV Generator (Model 1046)
  • Designed for dual AC Type A RVs (35A 2-Pole Breaker)
  • Runs two 15,000 BTU AC units w/ 3000 additional watts available
  • Cummins Onan 719cc Liquid-Cooled Diesel Engine
  • Automatic timed glow plugs for quick & easy starting
  • Elec. fuel pump w/ full oil & fuel filter (.49 Gal/h 1/2 Load)
  • Microprocessor Controlled
  • Self-diagnostic capability to simplify troubleshooting
  • High Quality, Pure Sine Wave Electrical Output
  • Digital voltage regulator prevents damaging spikes
  • Computer-Controlled Variable Speed Operation
  • Matches engine speed to load demand, minimizes noise levels
  • Sound-Attenuating Design w/ USDA Approved Spark-Arrestor Muffler
  • Lowers noise levels while providing cross-flow cooling
  • Three-Point, Fully Focalized Mounting System
  • Reduces vibration for quieter operation
  • Stationary exhaust pipe connection point for easy installation
  • Integrated Generator Set & Engine Control
  • Provides user friendly controls and safety features
  • 3 Year / 2000 Hour Warranty

Product Specification

A058J268
Product Specs
Voltage
120 Single-Phase
Frequency
60 Hertz
Alternator
Brush
Auto Voltage Regulation
Yes
Rated Watts
8000 Watts
Fuel Type
Diesel
Rated Amps
66.6 Amps
Diesel Fuel Consumption @ 50% Load
.49 gallons/hr
Decibel Rating @ 3m
66
Idle Control
Yes
Hour Meter
Yes
Fuel Consumption
.13-1.02 gallons/hr
Circuit Breaker Size
35 Amps
Min. Air Inlet - Front
6.4" x 20"
Min. Air Outlet - Bottom
7.3" x 12.7"
Grade Type
Recreational
Engine
Engine Brand
Cummins Onan
Starting System
12-Volt Button Start
HP
16.6 HP
CC
719 CC
Consumer Engine Warranty
3 Years
Low Oil Alert/Shutdown
Yes
Overview
Weight
420 Pounds
Consumer Warranty
3 Years
Product Length
36.3 Inches
Product Style
RV Generator
Product Width
23.6 Inches
Product Height
22.3 Inches
Additional Model Numbers

RV QD 8000, A058J268
